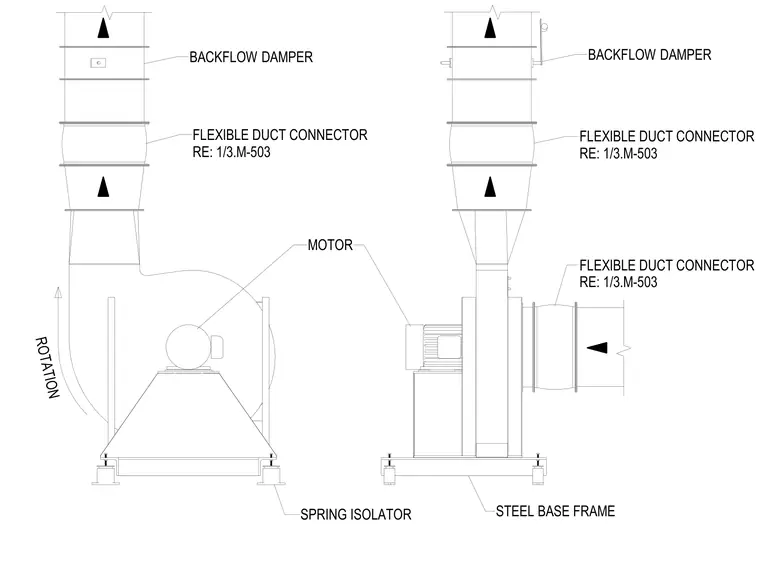

The fan assembly is mounted on a steel base frame supported by spring isolators to reduce vibration transmission. A motor drives the fan, which connects to the ductwork through flexible duct connectors. Backflow dampers are installed within the duct run to prevent reverse airflow.
ROTATION FLEXIBLE DUCT CONNECTOR RE: 1/3.M-503 FLEXIBLE DUCT CONNECTOR RE: 1/3.M-503 FLEXIBLE DUCT CONNECTOR RE: 1/3.M-503 BACKFLOW DAMPER BACKFLOW DAMPER STEEL BASE FRAME SPRING ISOLATOR MOTOR
