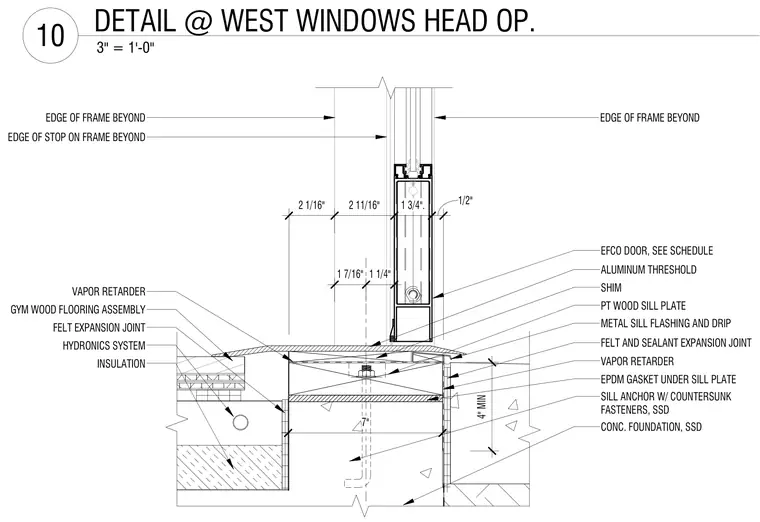

An aluminum door frame and threshold bear on a pressure-treated wood sill plate with shims, set over a metal sill flashing and drip. An EPDM gasket sits beneath the sill plate above a vapor retarder and concrete foundation. The foundation is secured with four-inch minimum sill anchors featuring countersunk fasteners. Felt and sealant form an expansion joint adjacent to the gym wood flooring assembly, which incorporates a vapor retarder, felt expansion joint, hydronics system, and insulation.
VAPOR RETARDER GYM WOOD FLOORING ASSEMBLY FELT EXPANSION JOINT HYDRONICS SYSTEM INSULATION 4" MIN SILL ANCHOR W/ COUNTERSUNK FASTENERS, SSD CONC. FOUNDATION, SSD METAL SILL FLASHING AND DRIP VAPOR RETARDER EPDM GASKET UNDER SILL PLATE PT WOOD SILL PLATE SHIM ALUMINUM THRESHOLD EFCO DOOR, SEE SCHEDULE FELT AND SEALANT EXPANSION JOINT EDGE OF FRAME BEYOND EDGE OF FRAME BEYOND EDGE OF STOP ON FRAME BEYOND 1 7/16" 1 1/4" 2 1/16" 2 11/16" 1 3/4". 1/2" 7" 3" = 1'-0" 10 DETAIL @ WEST WINDOWS HEAD OP.
