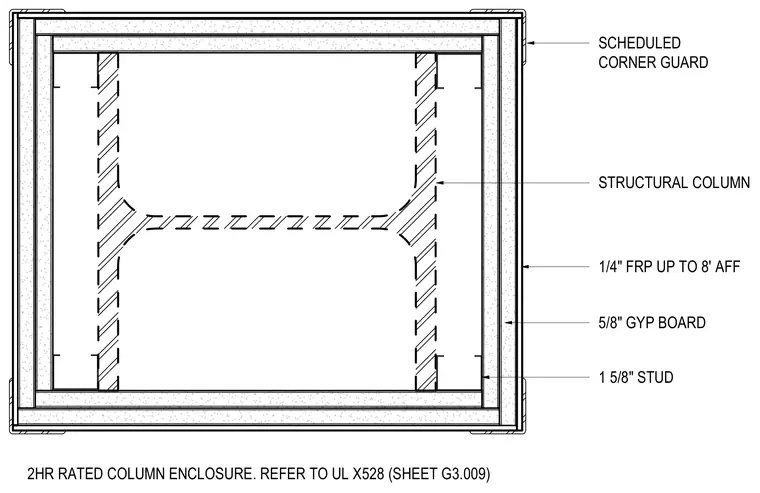

A structural steel column is framed with one and five-eighths inch studs and enclosed with five-eighths inch gypsum board to achieve a two-hour fire rating per UL X528. A quarter-inch thick fiberglass reinforced plastic wainscot extends up to eight feet above finished floor. Surface-mounted corner guards protect the exterior corners of the assembly.
1/4" FRP UP TO 8' AFF 5/8" GYP BOARD 1 5/8" STUD SCHEDULED CORNER GUARD STRUCTURAL COLUMN 2HR RATED COLUMN ENCLOSURE. REFER TO UL X528 (SHEET G3.009)
