The assembly consists of a Ventwood ceiling screen made of one-by-two-inch wide strips of CDX plywood spaced twelve inches on center and painted white. The wood screen is supported by main T-bar runners measuring fifteen-sixteenths of an inch wide by one and one-half inches high by zero point zero twenty inches thick, spaced twenty-four inches on center. The grid is suspended by hanger wires spaced at two feet zero inches on center maximum along the main tees. Each typical four-blade panel unit spans two feet zero inches, with individual blade spacing of five and one-quarter inches and three-quarters of an inch.

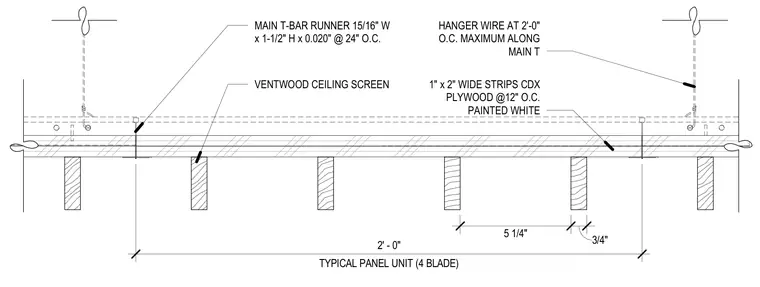

TYPICAL PANEL UNIT (4 BLADE) 2' - 0" 5 1/4" 3/4" MAIN T-BAR RUNNER 15/16" W x 1-1/2" H x 0.020" @ 24" O.C. VENTWOOD CEILING SCREEN 1" x 2" WIDE STRIPS CDX PLYWOOD @12" O.C. PAINTED WHITE HANGER WIRE AT 2'-0" O.C. MAXIMUM ALONG MAIN T
