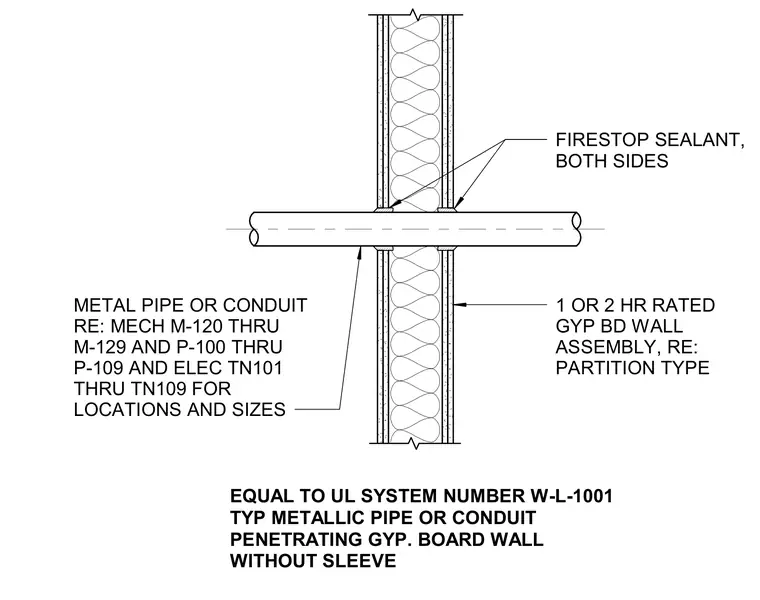

A metallic pipe or conduit penetrates a one- or two-hour rated gypsum board wall assembly without a sleeve. Firestop sealant is applied at the annular space on both sides of the wall. The wall assembly consists of metal studs with gypsum board layers on each side, conforming to UL system number W-L-1001.
EQUAL TO UL SYSTEM NUMBER W-L-1001 TYP METALLIC PIPE OR CONDUIT PENETRATING GYP. BOARD WALL WITHOUT SLEEVE 1 OR 2 HR RATED GYP BD WALL ASSEMBLY, RE: PARTITION TYPE FIRESTOP SEALANT, BOTH SIDES METAL PIPE OR CONDUIT RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 AND ELEC TN101 THRU TN109 FOR LOCATIONS AND SIZES
