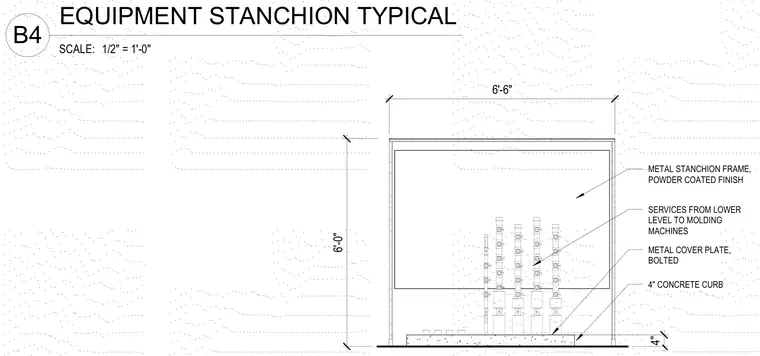

A metal stanchion frame with a powder-coated finish mounts over a four-inch concrete curb and carries services from the lower level to molding machines. A bolted metal cover plate protects the base assembly. Overall dimensions indicate a width of six feet six inches and a height of six feet zero inches from the top of the curb.
4" 6'-0" 6'-6" 4" CONCRETE CURB METAL COVER PLATE, BOLTED SERVICES FROM LOWER LEVEL TO MOLDING MACHINES METAL STANCHION FRAME, POWDER COATED FINISH SCALE: 1/2" = 1'-0" B4 EQUIPMENT STANCHION TYPICAL
