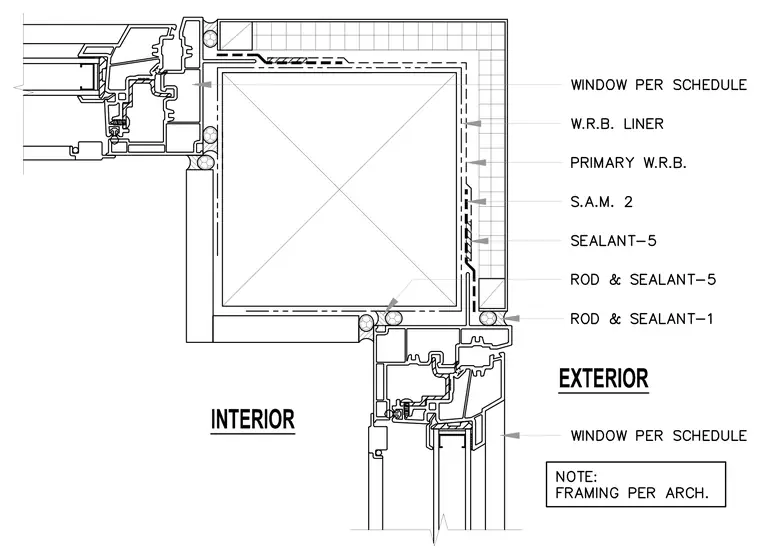

This horizontal plan detail shows a flanged window unit installed at an exterior building corner. A weather-resistive barrier liner and a primary weather-resistive barrier wrap the rough opening behind self-adhered membrane layers. Exterior joints are sealed with backer rod and multiple specified sealant types. The window frames are specified per schedule with framing sized per architectural drawings.
