Architectural · A-WFT5X

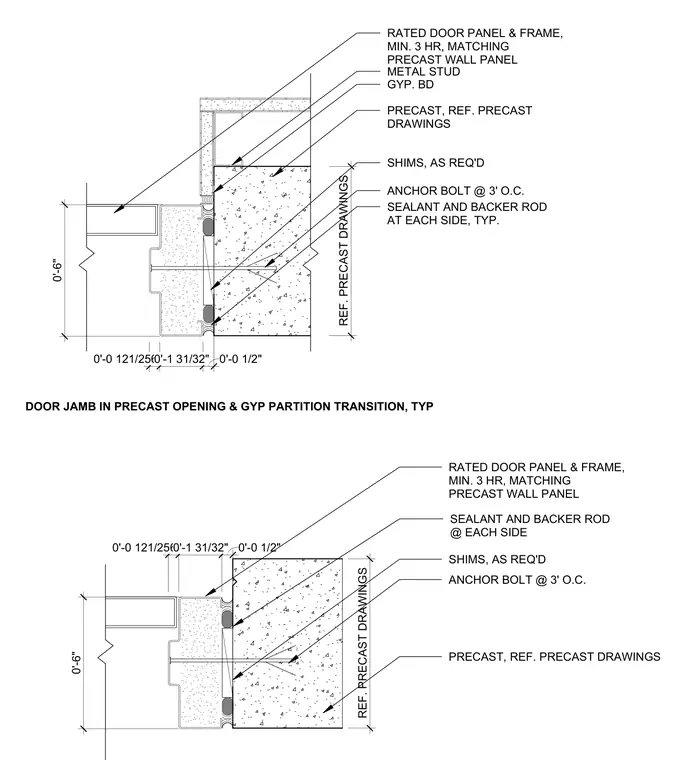

Door Jamb at Precast Concrete Wall Transition

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Doors Anchors / Embeds Roof / Floor Openings

Connections

Base Plate / Anchorage Bolted Connection

About this detail

A rated door panel and frame with a minimum three-hour rating matches the precast concrete wall panel opening. The precast panel connects to a backup cold-formed metal stud and gypsum board partition. Anchor bolts spaced at three feet on center secure the assembly with shims as required. Sealant and backer rod are installed at each side of the joint for weather and fire sealing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
