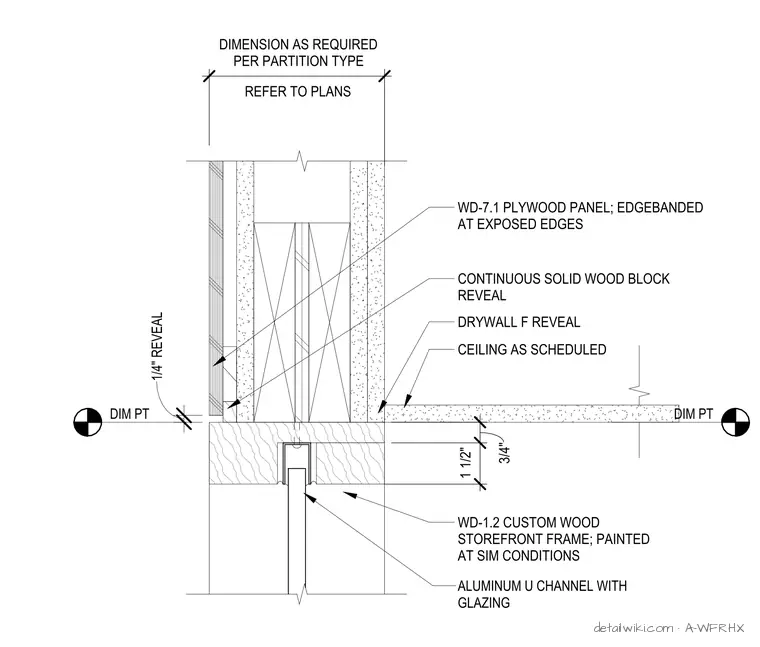

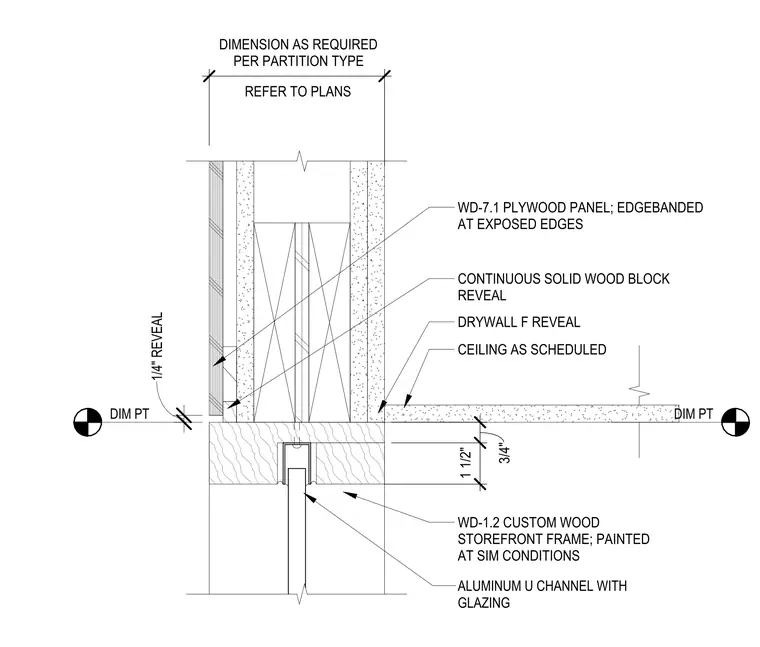

This assembly consists of a custom WD-1.2 painted wood storefront frame housing an aluminum U-channel with glazing, set beneath a continuous solid wood block reveal. The partition wall above the frame incorporates WD-7.1 edge-banded plywood panels on the face, with a 1/4-inch reveal at the transition to the frame. A drywall F-reveal profile terminates the gypsum wallboard at the ceiling line, which is finished as scheduled. The partition width is dimensioned as required per the specific partition type indicated on the plans.
