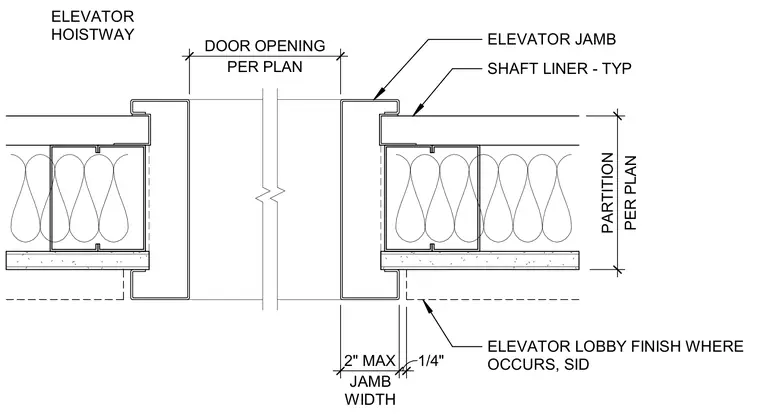

An elevator door frame is integrated into a shaft liner partition separating the elevator hoistway from the lobby. The hollow metal elevator jamb wraps the partition end and aligns with the typical shaft liner assembly. A door opening width is sized per plan, with a maximum two-inch jamb width and a quarter-inch clearance dimension. Elevator lobby finishes occur as indicated on the architectural floor plan.
ELEVATOR JAMB SHAFT LINER - TYP PER PLAN PARTITION PER PLAN DOOR OPENING ELEVATOR LOBBY FINISH WHERE OCCURS, SID ELEVATOR HOISTWAY 2" MAX 1/4" JAMB WIDTH
