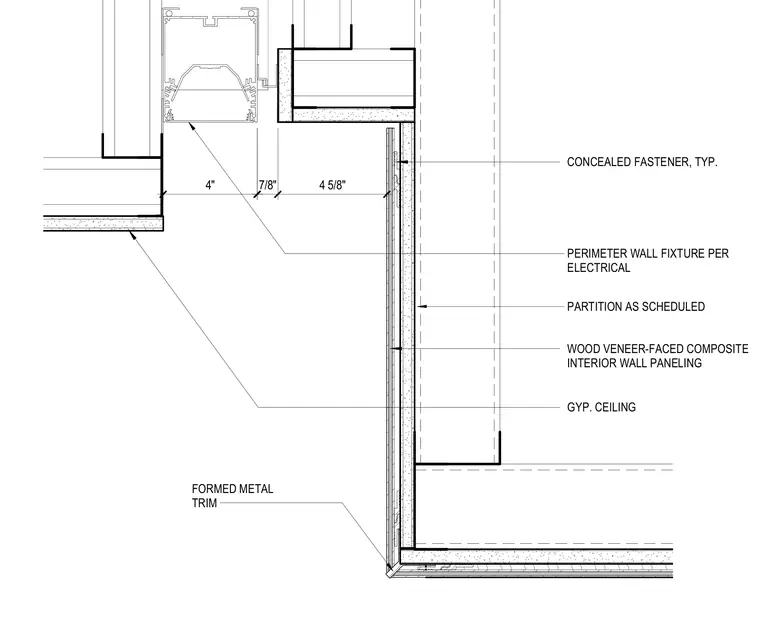

Wood veneer-faced composite interior wall paneling is mounted to a partition as scheduled using concealed fasteners typically. A perimeter wall fixture is integrated into the architectural ceiling cove layout. Formed metal trim finishes the corner transition at the edge of the assembly. Gypsum ceiling construction abuts the perimeter light fixture housing.
PERIMETER WALL FIXTURE PER ELECTRICAL PARTITION AS SCHEDULED WOOD VENEER-FACED COMPOSITE INTERIOR WALL PANELING CONCEALED FASTENER, TYP. FORMED METAL TRIM GYP. CEILING 4" 4 5/8" 7/8"
