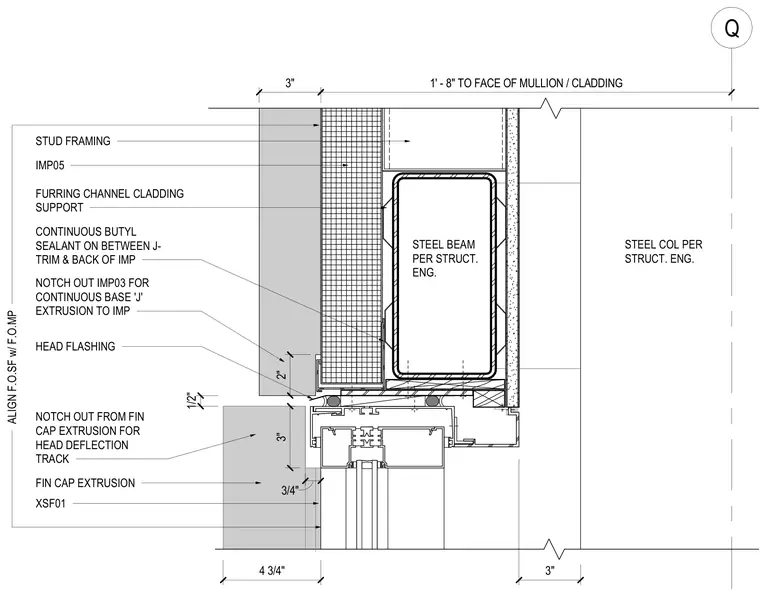

An insulated metal panel assembly meets a storefront head section supported by a structural steel beam and column. Head flashing aligns with the face of the storefront and insulated metal panel. Continuous butyl sealant is applied between the J-trim and the back of the panel. The insulated metal panel is notched out for a continuous base J-extrusion. The fin cap extrusion is notched for the head deflection track.
Q IMP05 HEAD FLASHING ALIGN F.O.SF w/ F.O.MP STEEL BEAM PER STRUCT. ENG. STUD FRAMING FURRING CHANNEL CLADDING SUPPORT NOTCH OUT FROM FIN CAP EXTRUSION FOR HEAD DEFLECTION TRACK XSF01 1/2" 3" 3" CONTINUOUS BUTYL SEALANT ON BETWEEN J- TRIM & BACK OF IMP 3" 3/4" 2" NOTCH OUT IMP03 FOR CONTINUOUS BASE 'J' EXTRUSION TO IMP 4 3/4" 1' - 8" TO FACE OF MULLION / CLADDING STEEL COL PER STRUCT. ENG. FIN CAP EXTRUSION
