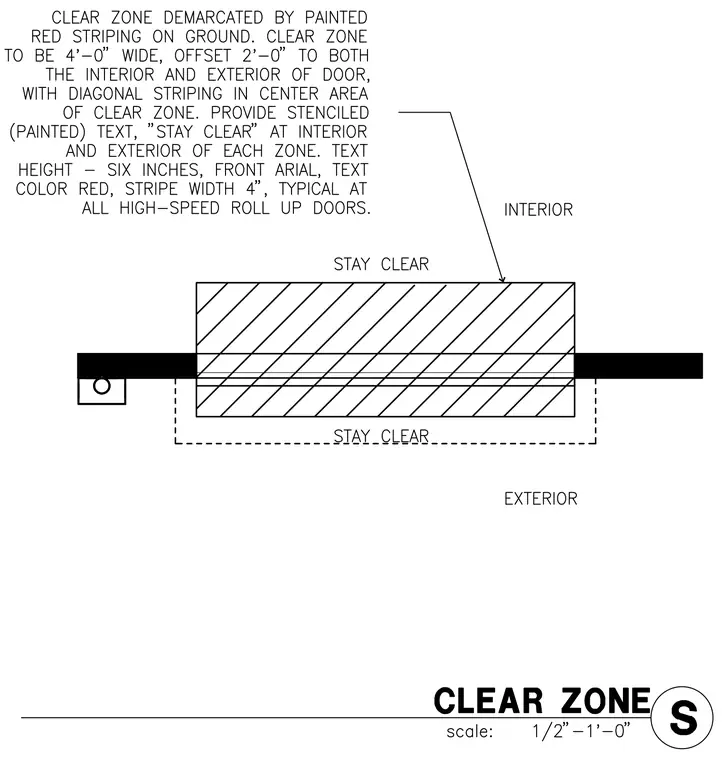

A four-foot wide clear zone is demarcated on the ground by painted red striping, offset two feet to both the interior and exterior of the door. The center area features diagonal striping with stencilled red text reading "STAY CLEAR" in six-inch Arial font. The red stripes are four inches wide and apply typically to all high-speed roll-up doors.
