Suspended speaker assembly featuring an Adaptive SAS-48-RB rigging bracket supporting a speaker weighing up to ninety pounds maximum. The assembly uses a one-half-inch threaded rod with a rod stiffener cut to length in four places. Five places use an Adaptive SAS-EB-KT eyebolt kit connected to three-eighths-inch wire rope of required length in three per speaker. Four places use twelve-gauge ten to forty-five degree bracing wire with four tight turns each end within one and one-half inches.

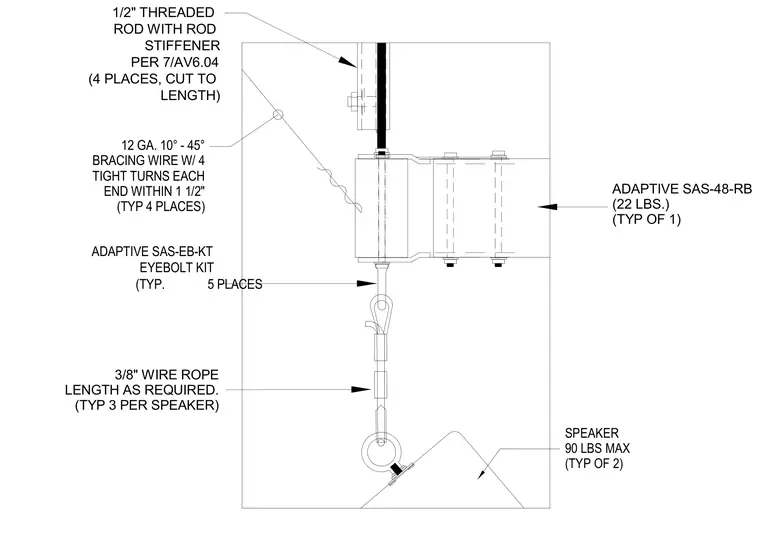

ADAPTIVE SAS-48-RB (22 LBS.) (TYP OF 1) 3/8" WIRE ROPE LENGTH AS REQUIRED. (TYP 3 PER SPEAKER) ADAPTIVE SAS-EB-KT EYEBOLT KIT (TYP. 5 PLACES 1/2" THREADED ROD WITH ROD STIFFENER PER 7/AV6.04 (4 PLACES, CUT TO LENGTH) SPEAKER 90 LBS MAX (TYP OF 2) 12 GA. 10° - 45° BRACING WIRE W/ 4 TIGHT TURNS EACH END WITHIN 1 1/2" (TYP 4 PLACES)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
