Upper and Lower Millwork Casework Section at Wall

Materials

Cold-formed Steel Timber / Wood Stone Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

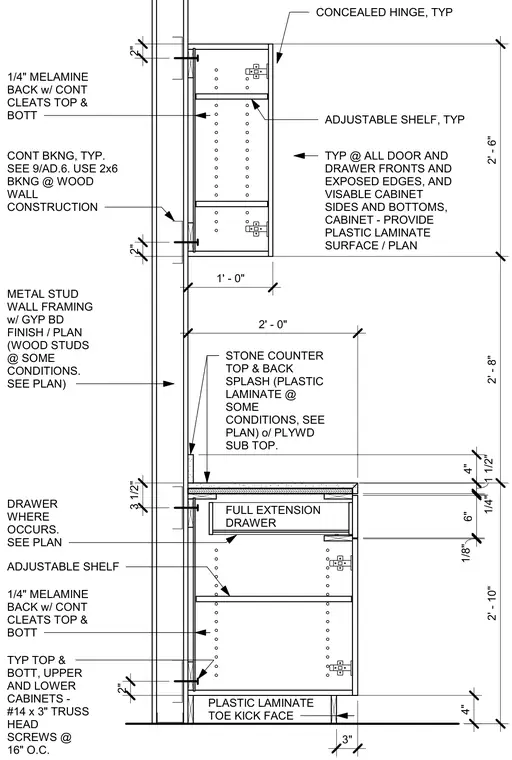

This interior millwork detail shows upper and lower cabinetry mounted against a metal stud wall framing with gypsum board finish, or wood stud construction as noted on plan. Continuous backing is secured behind the wall finish for cabinet attachment, anchored with number fourteen by three inch truss head screws at sixteen inches on center through top and bottom cabinet rails. The upper and lower cabinets feature plastic laminate surfaces on all door and drawer fronts, exposed edges, and visible cabinet sides and bottoms, with one quarter inch melamine backs and continuous top and bottom cleats. The lower cabinet supports a stone countertop and matching back splash over a plywood sub top, and includes full extension drawers where indicated along with adjustable interior shelving and a plastic laminate toe kick face.
