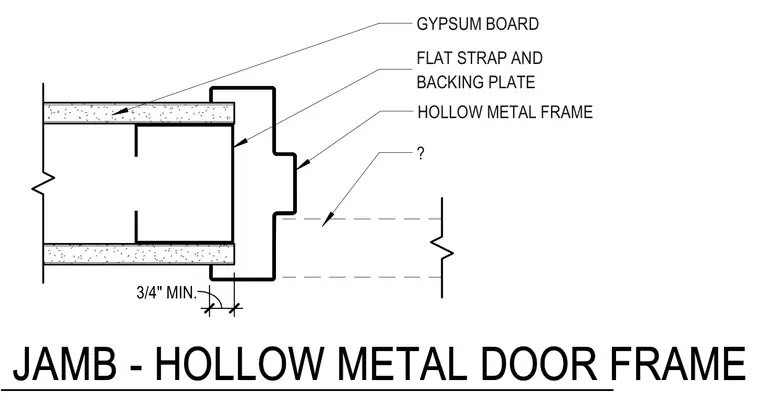

A hollow metal door frame connects to a partition wall framed with gypsum board over flat straps and backing plates. The gypsum board laps the frame return by a minimum of three-quarters of an inch.
? GYPSUM BOARD FLAT STRAP AND BACKING PLATE HOLLOW METAL FRAME 3 / 4 " M I N . JAMB - HOLLOW METAL DOOR FRAME
