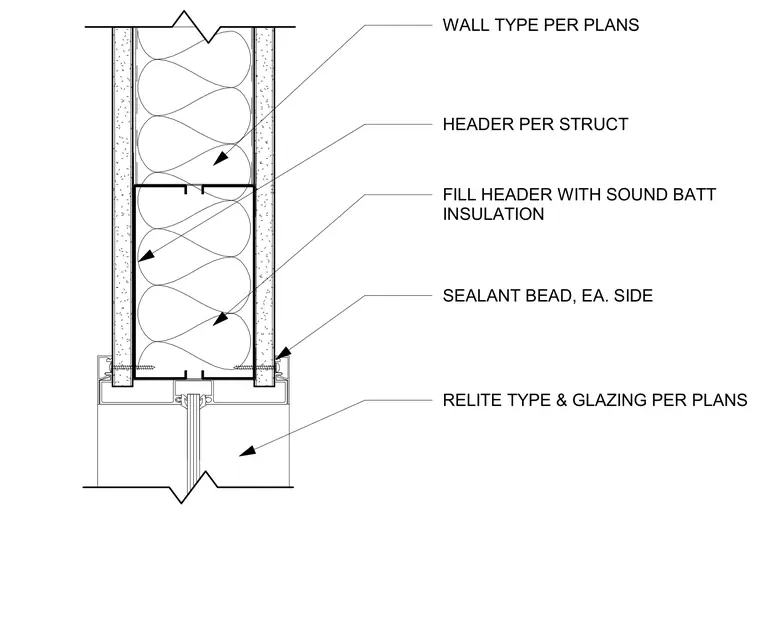

An aluminum relite head frame connects to the underside of a structural header framed within a wall assembly per plans. The header cavity is filled with sound batt insulation for acoustic separation. Gypsum wallboard sheathing finishes both sides of the framing and abuts the aluminum frame. A sealant bead is applied on each side at the joint between the gypsum board and the window frame.
WALL TYPE PER PLANS HEADER PER STRUCT FILL HEADER WITH SOUND BATT INSULATION RELITE TYPE & GLAZING PER PLANS SEALANT BEAD, EA. SIDE
