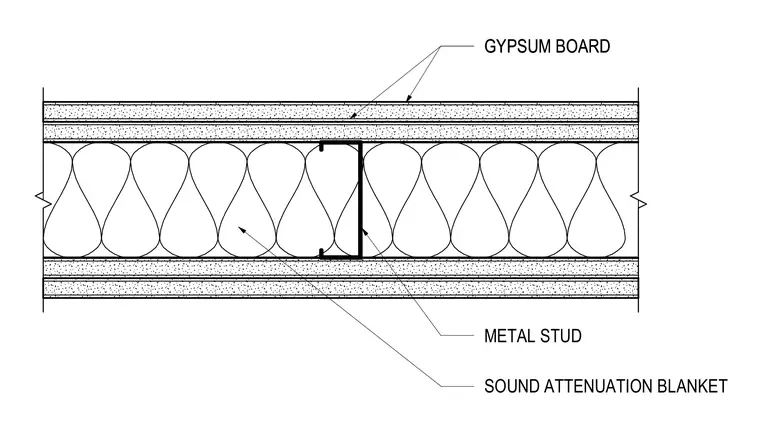

This interior partition assembly consists of cold-formed metal studs flanked by multiple layers of gypsum board on each side. A sound attenuation blanket fills the stud cavity to improve acoustic performance. The gypsum board layers are fastened directly to the metal stud framing.
