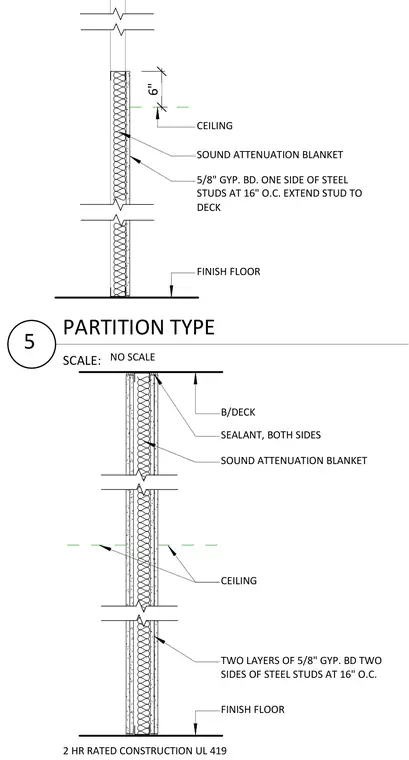

Two layers of five-eighths-inch gypsum board are applied to two sides of steel studs spaced at sixteen inches on center. A sound attenuation blanket fills the stud cavity, and sealant is applied to both sides at the ceiling deck junction. Steel studs extend up to the metal deck above for fire-rated assembly UL 419. An alternate partition condition shows five-eighths-inch gypsum board on one side of steel studs at sixteen inches on center extending to the deck with a six-inch clearance to the ceiling.
TWO LAYERS OF 5/8" GYP. BD TWO SIDES OF STEEL STUDS AT 16" O.C. FINISH FLOOR CEILING B/DECK SOUND ATTENUATION BLANKET SEALANT, BOTH SIDES 2 HR RATED CONSTRUCTION UL 419 5/8" GYP. BD. ONE SIDE OF STEEL STUDS AT 16" O.C. EXTEND STUD TO DECK FINISH FLOOR CEILING 6" SOUND ATTENUATION BLANKET SCALE: NO SCALE 5 PARTITION TYPE
