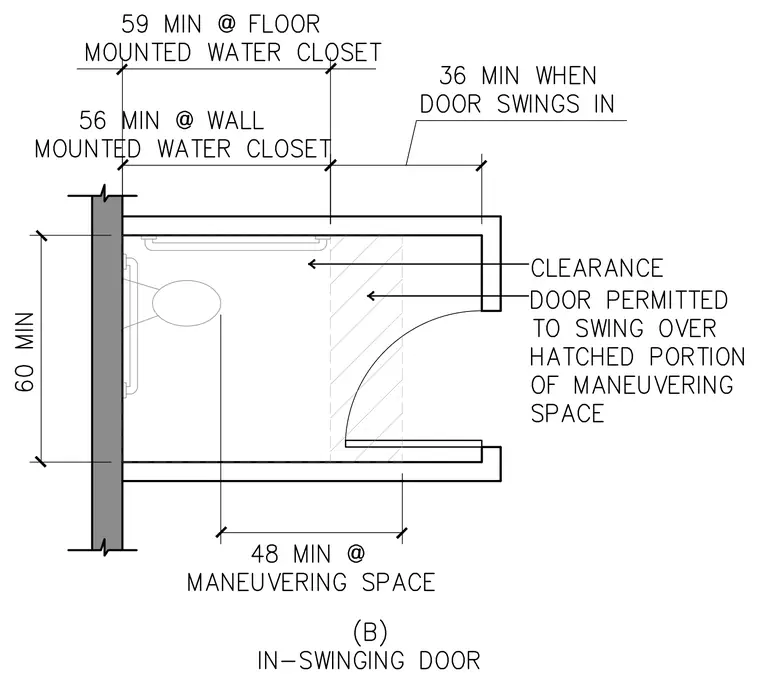

An accessible water closet stall plan details minimum clearance requirements and maneuvering space dimensions for an in-swinging door. The layout specifies a minimum width of sixty inches from the wall, with a forty-eight-inch minimum maneuvering space length. A wall-mounted water closet requires fifty-six inches minimum, while a floor-mounted water closet requires fifty-nine inches minimum. The door swing is permitted to overlap the hatched portion of the maneuvering space, maintaining a thirty-six-inch minimum clearance when the door swings in.
