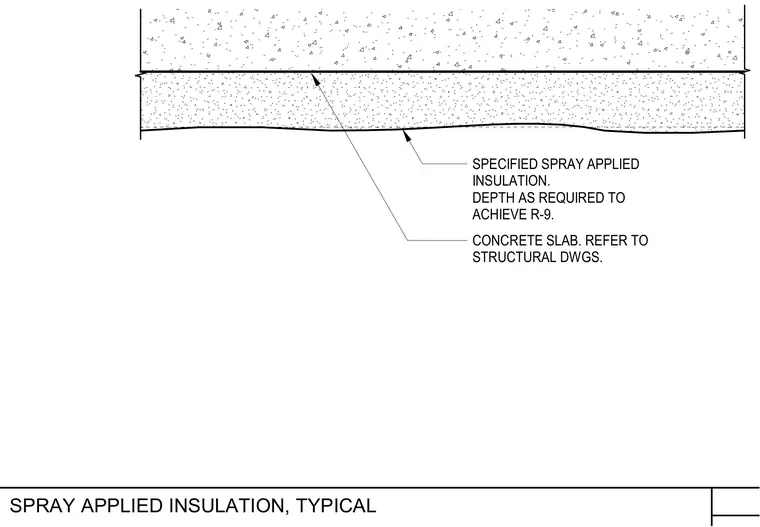

Spray-applied insulation is applied directly to the underside of the concrete slab at a depth determined to achieve R-9 thermal performance. Concrete slab dimensions and structural specifications coordinate with the structural drawings.
SPECIFIED SPRAY APPLIED INSULATION. DEPTH AS REQUIRED TO ACHIEVE R-9. CONCRETE SLAB. REFER TO STRUCTURAL DWGS. SPRAY APPLIED INSULATION, TYPICAL
