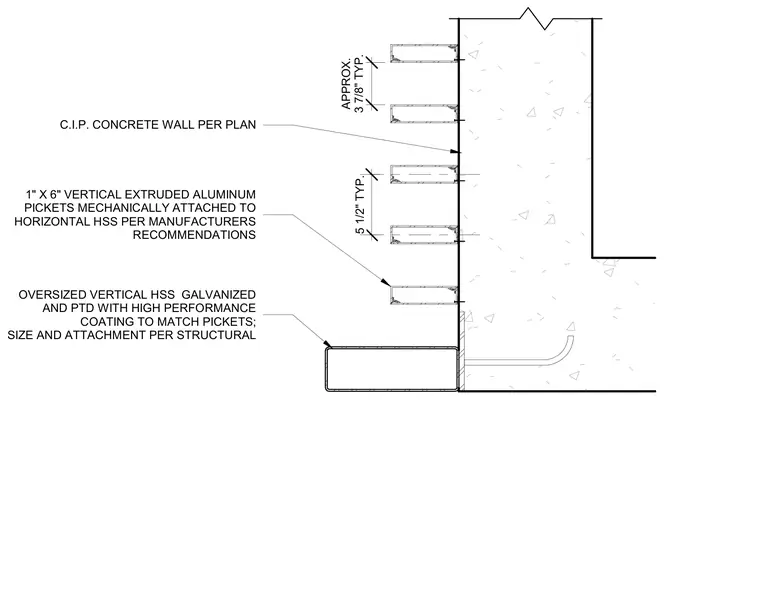

One-inch by six-inch vertical extruded aluminum pickets are mechanically attached to horizontal hollow structural section members per the manufacturer recommendations. An oversized vertical hollow structural section is galvanized and painted with a high-performance coating to match the pickets, with its size and attachment sized per structural requirements. The entire assembly mounts against a cast-in-place concrete wall per plan with typical spacing dimensions of three and seven-eighths inches and five and one-half inches.
OVERSIZED VERTICAL HSS GALVANIZED AND PTD WITH HIGH PERFORMANCE COATING TO MATCH PICKETS; SIZE AND ATTACHMENT PER STRUCTURAL 1" X 6" VERTICAL EXTRUDED ALUMINUM PICKETS MECHANICALLY ATTACHED TO HORIZONTAL HSS PER MANUFACTURERS RECOMMENDATIONS C.I.P. CONCRETE WALL PER PLAN APPROX. 3 7/8" TYP. 5 1/2" TYP.
