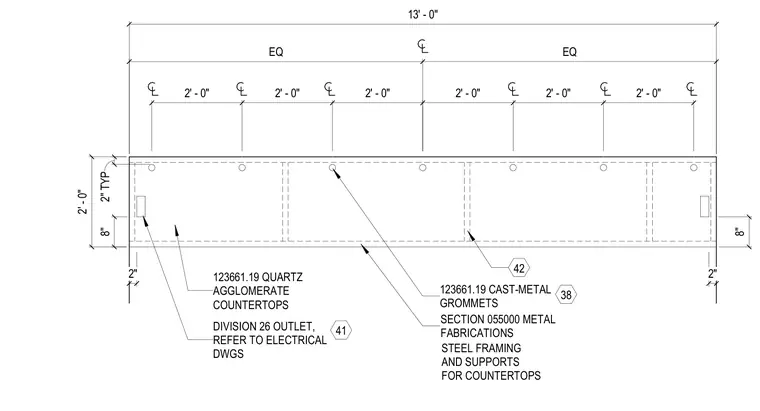

A thirteen-foot-long quartz agglomerate countertop is supported by concealed steel framing and metal fabrications specified under Section 055000. Cast-metal grommets are spaced across the work surface, and electrical outlets specified under Division 26 are integrated at both ends. The plan is fully dimensioned with equal bays and two-foot modular increments.
2' - 0" 2' - 0" 2' - 0" 2' - 0" 2' - 0" 2' - 0" 2" 8" 2" 8" EQ EQ DIVISION 26 OUTLET, REFER TO ELECTRICAL DWGS 41 123661.19 CAST-METAL GROMMETS 38 SECTION 055000 METAL FABRICATIONS STEEL FRAMING AND SUPPORTS FOR COUNTERTOPS 42 2" TYP 123661.19 QUARTZ AGGLOMERATE COUNTERTOPS 13' - 0" 2' - 0"
