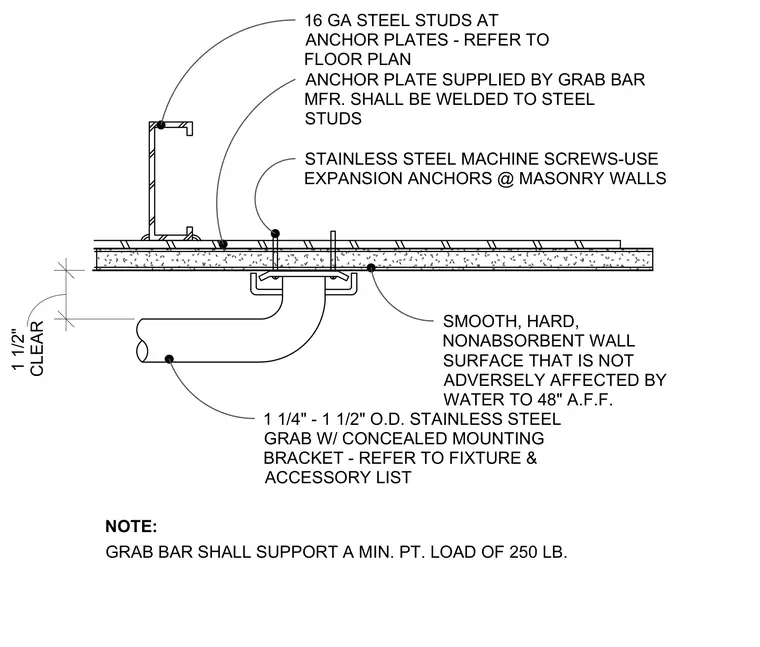

An accessible grab bar installation features a one-and-a-quarter to one-and-a-half inch outer diameter stainless steel grab bar mounted with a concealed bracket. The assembly secures to sixteen-gauge steel studs using manufacturer-supplied anchor plates welded to the studs, or to masonry walls using expansion anchors and stainless steel machine screws. A smooth, hard, non-absorbent wall surface extends to forty-eight inches above finished floor and maintains a one-and-a-half inch clear space behind the bar. The completed grab bar installation supports a minimum point load of two hundred fifty pounds.
16 GA STEEL STUDS AT ANCHOR PLATES - REFER TO FLOOR PLAN ANCHOR PLATE SUPPLIED BY GRAB BAR MFR. SHALL BE WELDED TO STEEL STUDS STAINLESS STEEL MACHINE SCREWS-USE EXPANSION ANCHORS @ MASONRY WALLS 1 1/4" - 1 1/2" O.D. STAINLESS STEEL GRAB W/ CONCEALED MOUNTING BRACKET - REFER TO FIXTURE & ACCESSORY LIST SMOOTH, HARD, NONABSORBENT WALL SURFACE THAT IS NOT ADVERSELY AFFECTED BY WATER TO 48" A.F.F. GRAB BAR SHALL SUPPORT A MIN. PT. LOAD OF 250 LB. NOTE: CLEAR 1 1/2"
