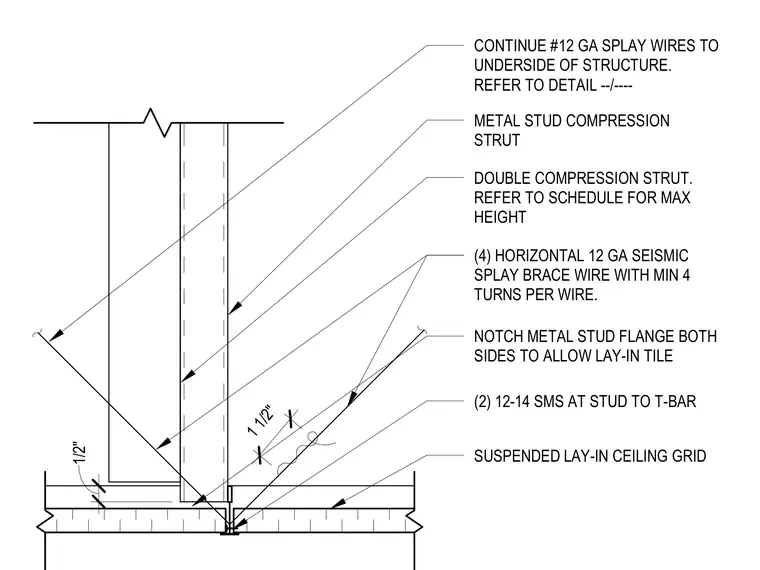

A metal stud compression strut bears against a suspended lay-in ceiling grid, secured at the T-bar using two 12-14 sheet metal screws. Four horizontal 12-gauge seismic splay brace wires with a minimum of four turns per wire provide lateral support, while continuous 12-gauge splay wires extend upward to the underside of the structure. The metal stud flange is notched on both sides to accommodate the lay-in tile.
1/2" CONTINUE #12 GA SPLAY WIRES TO UNDERSIDE OF STRUCTURE. REFER TO DETAIL --/---- METAL STUD COMPRESSION STRUT DOUBLE COMPRESSION STRUT. REFER TO SCHEDULE FOR MAX HEIGHT (4) HORIZONTAL 12 GA SEISMIC SPLAY BRACE WIRE WITH MIN 4 TURNS PER WIRE. NOTCH METAL STUD FLANGE BOTH SIDES TO ALLOW LAY-IN TILE (2) 12-14 SMS AT STUD TO T-BAR SUSPENDED LAY-IN CEILING GRID 1 1/2"
