Architectural · A-WDDSE

Details At Trellised Beams

Materials

Cold-formed Steel Metal (misc.)Steel Timber / Wood

Elements

Beams Drainage Facades / Cladding Waterproofing / Flashing

Connections

Beam-to-Beam Deck Attachment HSS Connection Welded Connection

About this detail

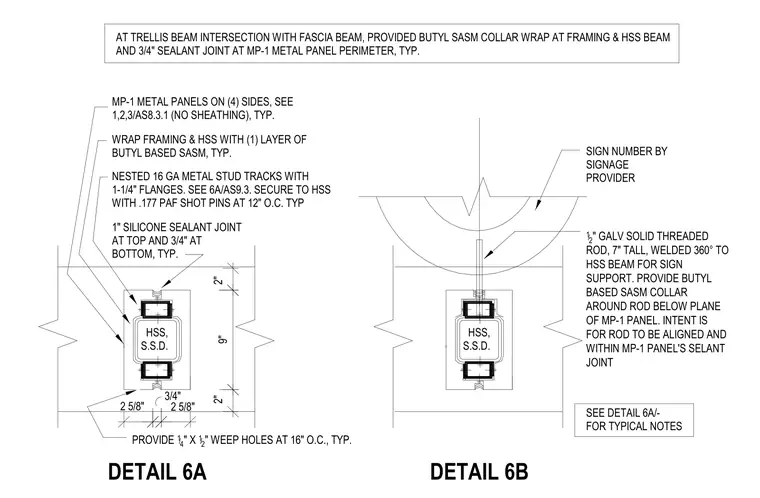

Nested sixteen gauge metal stud tracks with one and one-quarter inch flanges are secured to a hollow structural section beam using zero point one hundred seventy-seven powder-actuated fastener shot pins at twelve inches on center. The framing and hollow structural section are wrapped with one layer of butyl-based self-adhered sheet membrane. Metal panels clad all four sides without sheathing, featuring a one-inch silicone sealant joint at the top, a three-quarter-inch joint at the bottom, and quarter-inch by half-inch weep holes at sixteen inches on center. A half-inch galvanized solid threaded rod, seven inches tall, is welded three hundred sixty degrees to the hollow structural section beam for sign support. A butyl-based self-adhered sheet membrane collar is provided around the threaded rod below the plane of the metal panel.
