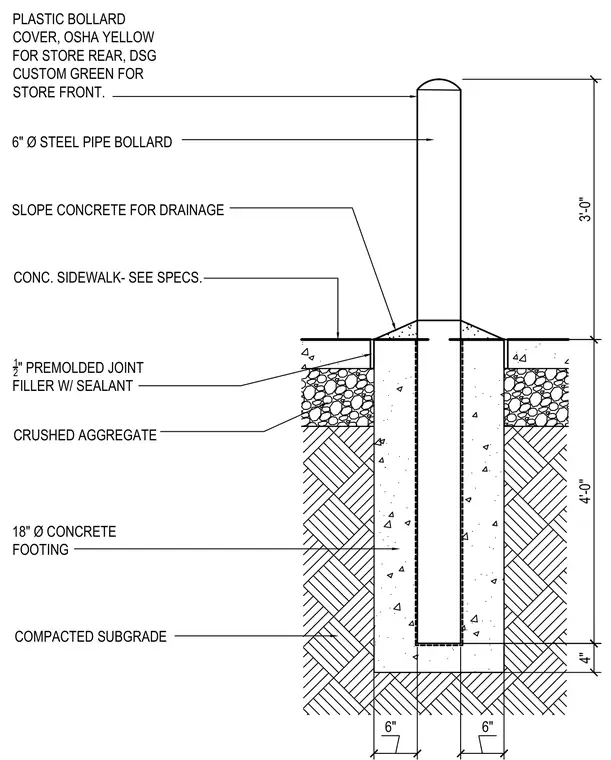

A 6-inch diameter steel pipe bollard is embedded into an 18-inch diameter concrete footing set within a compacted subgrade. The surrounding concrete sidewalk slopes away from the bollard for drainage and is separated by a 1/2-inch premolded joint filler with sealant. A crushed aggregate layer lies beneath the sidewalk adjacent to the footing. The exposed steel pipe is fitted with a plastic bollard cover, specified as OSHA yellow for the store rear and custom green for the store front.
3'-0" 4'-0" 4" 6" 6" CONC. SIDEWALK- SEE SPECS. 6" Ø STEEL PIPE BOLLARD SLOPE CONCRETE FOR DRAINAGE CRUSHED AGGREGATE COMPACTED SUBGRADE PLASTIC BOLLARD COVER, OSHA YELLOW FOR STORE REAR, DSG CUSTOM GREEN FOR STORE FRONT. 1 2 " PREMOLDED JOINT FILLER W/ SEALANT 18" Ø CONCRETE FOOTING
