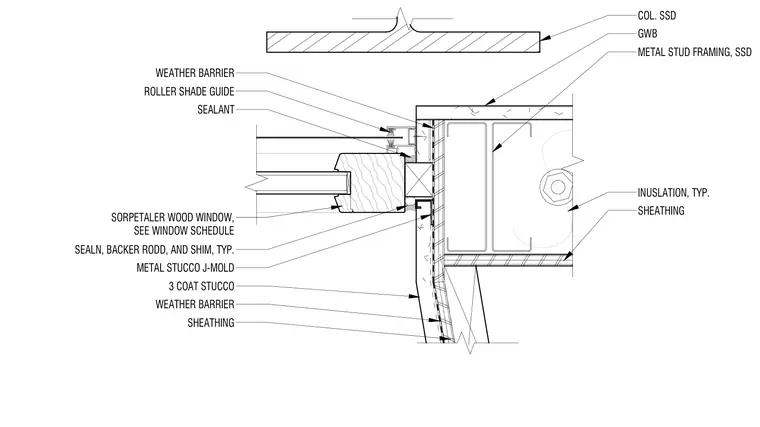

A Sorpetaler wood window from the window schedule connects to cold-formed metal stud framing with sheathing and insulation. The exterior finish consists of a weather barrier behind a three-coat stucco system terminated with a metal stucco J-mold. A sealant joint with backer rod and shim seals the transition between the window frame and the exterior wall. Gypsum wallboard lines the interior surface, and a roller shade guide is mounted near the window head.
COL. SSD GWB METAL STUD FRAMING, SSD SHEATHING INUSLATION, TYP. SHEATHING WEATHER BARRIER 3 COAT STUCCO METAL STUCCO J-MOLD SEALN, BACKER RODD, AND SHIM, TYP. SORPETALER WOOD WINDOW, SEE WINDOW SCHEDULE WEATHER BARRIER ROLLER SHADE GUIDE SEALANT
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
