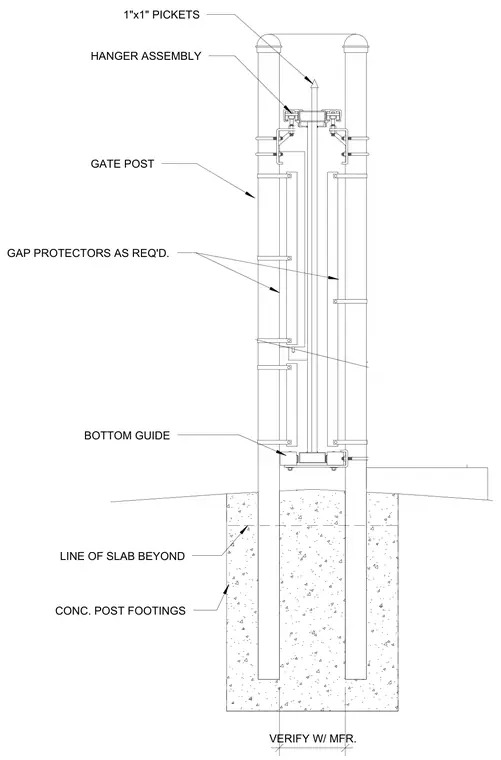

A rolling gate section is supported by structural gate posts embedded in concrete post footings. The upper portion incorporates a hanger assembly and one-inch by one-inch pickets with gap protectors as required. A bottom guide aligns the lower travel of the gate assembly. The concrete footings anchor the vertical posts, with the line of slab visible beyond per the adjacent construction.
VERIFY W/ MFR. HANGER ASSEMBLY BOTTOM GUIDE CONC. POST FOOTINGS GATE POST GAP PROTECTORS AS REQ'D. 1"x1" PICKETS LINE OF SLAB BEYOND
