A nominal one and one-quarter to two-inch diameter metal grab bar mounts to a wall per architectural plans using manufacturer-specified fasteners and supports. The mounting support and fasteners resist a two hundred fifty pound point load in bending, shear, and torsion. A minimum one-foot clearance is maintained above the grab bar, and all surrounding wall surfaces remain free of sharp or abrasive elements.

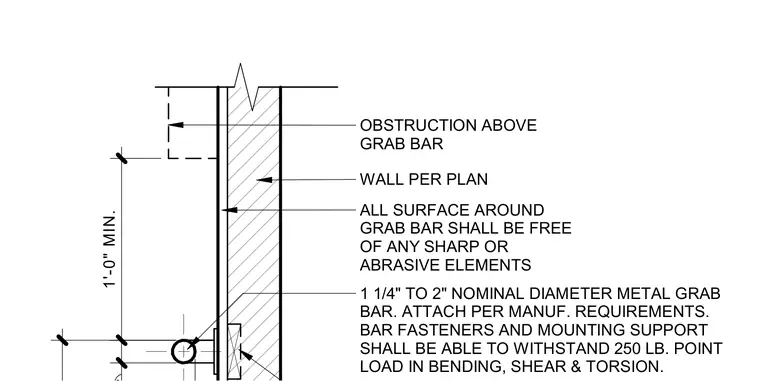

1'-0" MIN. OBSTRUCTION ABOVE GRAB BAR ALL SURFACE AROUND GRAB BAR SHALL BE FREE OF ANY SHARP OR ABRASIVE ELEMENTS 1 1/4" TO 2" NOMINAL DIAMETER METAL GRAB BAR. ATTACH PER MANUF. REQUIREMENTS. BAR FASTENERS AND MOUNTING SUPPORT SHALL BE ABLE TO WITHSTAND 250 LB. POINT LOAD IN BENDING, SHEAR & TORSION. WALL PER PLAN
