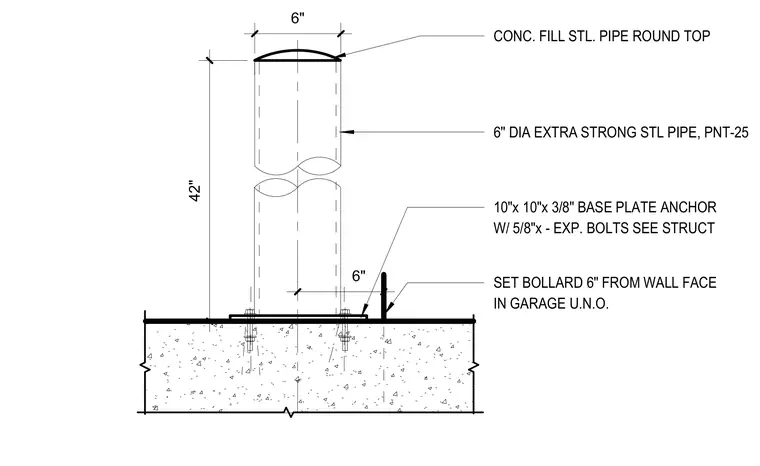

A six-inch diameter extra-strong steel pipe extends forty-two inches above a concrete floor slab and is filled with concrete, topped with a rounded profile. The pipe is welded to a ten-inch by ten-inch by three-eighths-inch steel base plate anchored to the concrete slab using five-eighths-inch expansion bolts sized per the structural drawing. The bollard is set six inches from the wall face in the garage unless noted otherwise.
CONC. FILL STL. PIPE ROUND TOP 42" 6" DIA EXTRA STRONG STL PIPE, PNT-25 10"x 10"x 3/8" BASE PLATE ANCHOR W/ 5/8"x - EXP. BOLTS SEE STRUCT SET BOLLARD 6" FROM WALL FACE IN GARAGE U.N.O. 6" 6"
