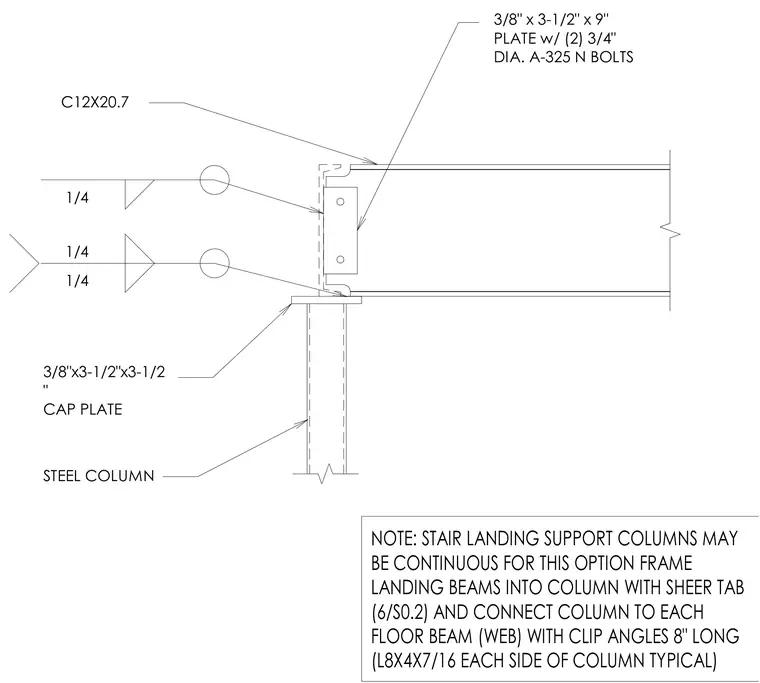

A structural steel connection detail showing a channel landing beam framing into a steel column. The C12X20.7 channel beam connects to a three-eighths by three-and-a-half by nine-inch plate using two three-quarter-inch diameter A-325 N bolts. A three-eighths by three-and-a-half by three-and-a-half-inch cap plate is welded to the top of the steel column with quarter-inch fillet welds. Notes indicate stair landing support columns may be continuous for this option, with landing beams framed into columns using shear tabs and column-to-floor-beam web connections made with eight-inch long clip angles.
1/4 1/4 3/8"x3-1/2"x3-1/2 " CAP PLATE STEEL COLUMN C12X20.7 1/4 3/8" x 3-1/2" x 9" PLATE w/ (2) 3/4" DIA. A-325 N BOLTS NOTE: STAIR LANDING SUPPORT COLUMNS MAY BE CONTINUOUS FOR THIS OPTION FRAME LANDING BEAMS INTO COLUMN WITH SHEER TAB (6/S0.2) AND CONNECT COLUMN TO EACH FLOOR BEAM (WEB) WITH CLIP ANGLES 8" LONG (L8X4X7/16 EACH SIDE OF COLUMN TYPICAL)
