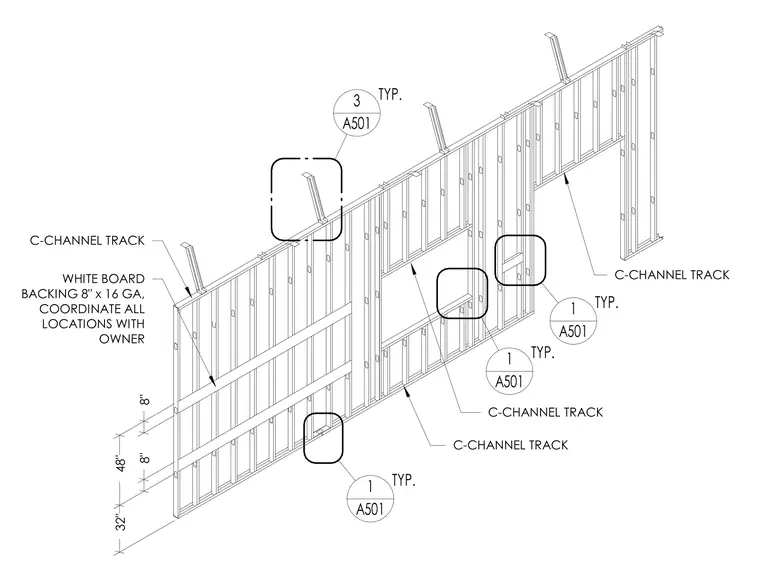

This assembly consists of a cold-formed steel stud partition wall framed with vertical studs and horizontal C-channel track members. A continuous 8-inch wide by 16-gauge C-channel track is installed as backing for a whiteboard, positioned at specific heights of 32 inches, 48 inches, and 8 inches from the floor. All backing locations must be coordinated with the owner. The framing includes typical connections referenced to detail A501 for structural integration.
Text on the drawing
8" 8" 48" 32" C-CHANNEL TRACK C-CHANNEL TRACK WHITE BOARD BACKING 8" x 16 GA, COORDINATE ALL LOCATIONS WITH OWNER C-CHANNEL TRACK C-CHANNEL TRACK A501 3 TYP. A501 1 TYP. A501 1 TYP. A501 1 TYP.
