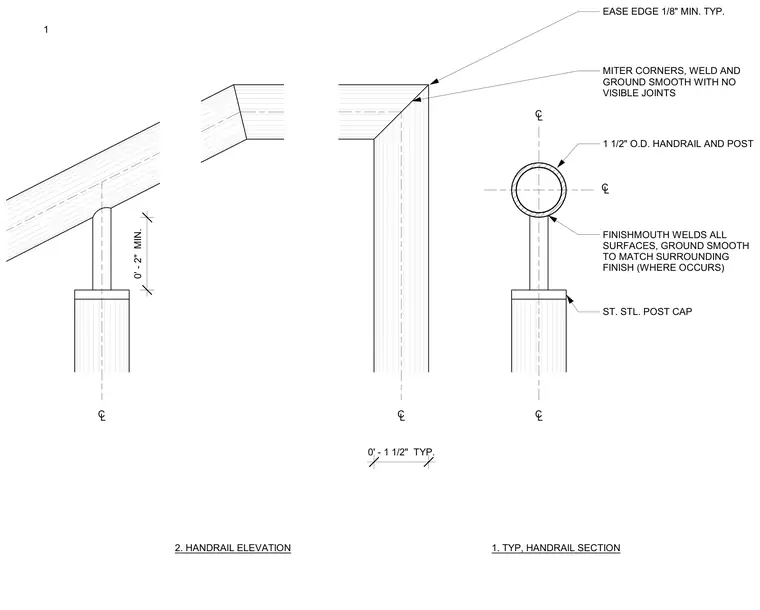

An exterior handrail and post assembly utilizes one-and-a-half-inch outside diameter stainless steel tubing joined with mitered corners. All surfaces feature finish mouth welds ground smooth to match the surrounding finish with no visible joints. A stainless steel post cap sits atop the support post, maintaining a two-inch minimum clearance from the handrail. Edges are eased to an eighth-inch minimum typical dimension.
2. HANDRAIL ELEVATION 1. TYP, HANDRAIL SECTION 0' - 2" MIN. CL CL 0' - 1 1/2" TYP. CL 1 1/2" O.D. HANDRAIL AND POST CL FINISHMOUTH WELDS ALL SURFACES, GROUND SMOOTH TO MATCH SURROUNDING FINISH (WHERE OCCURS) ST. STL. POST CAP 1 MITER CORNERS, WELD AND GROUND SMOOTH WITH NO VISIBLE JOINTS EASE EDGE 1/8" MIN. TYP. CL
