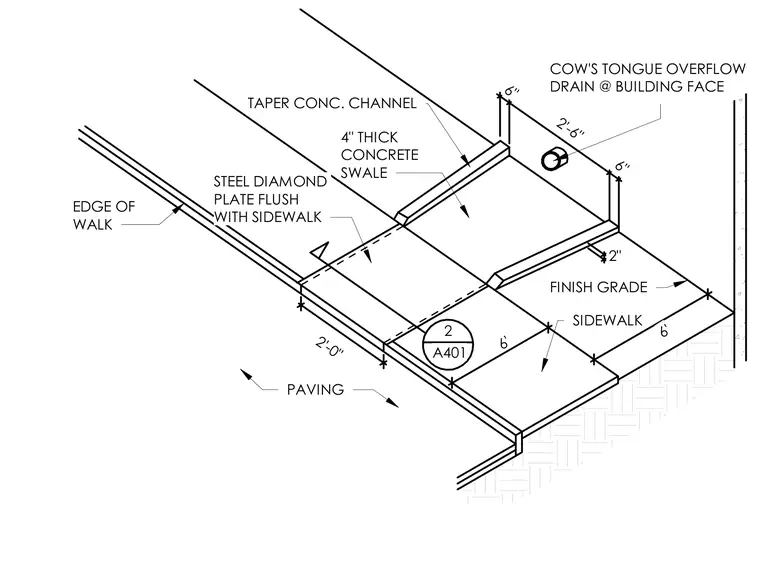

A cow's tongue overflow drain penetrates the building face above a tapered concrete channel and a four-inch-thick concrete swale. A steel diamond plate sits flush with the sidewalk paving alongside the swale. Dimensional callouts indicate a two-foot-zero-inch paving transition and localized six-inch and two-inch vertical clearances. Finish grade and sidewalk edges meet the paved exterior assembly.
COW'S TONGUE OVERFLOW DRAIN @ BUILDING FACE 6" 2'-6" 6" TAPER CONC. CHANNEL 2" 4" THICK CONCRETE SWALE STEEL DIAMOND PLATE FLUSH WITH SIDEWALK EDGE OF WALK PAVING FINISH GRADE SIDEWALK 2'-0" 6' 6' 2 A401 f
