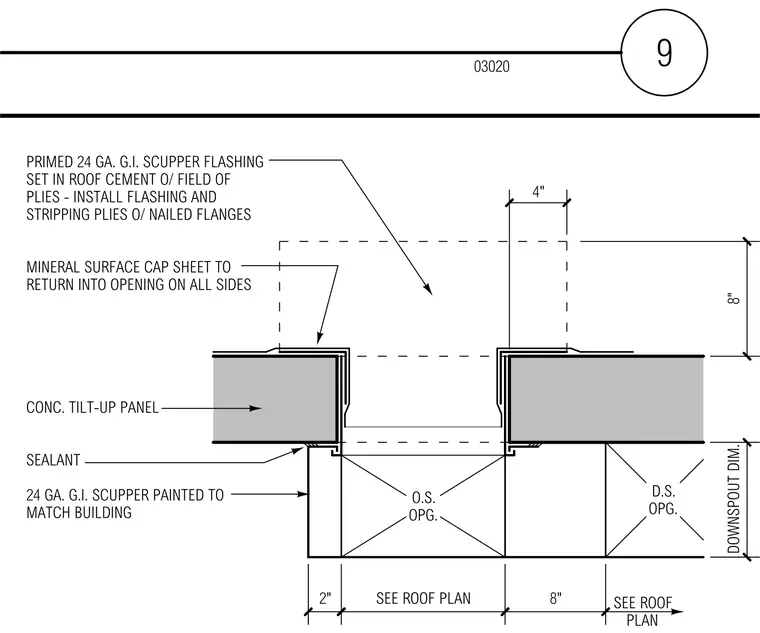

A primed twenty-four gauge galvanized iron scupper flashing is set in roof cement over a field of plies with nailed flanges at a concrete tilt-up panel opening. A mineral surface cap sheet returns into the opening on all sides over the flashing. Joint sealant is applied at the exterior interface, and the twenty-four gauge galvanized iron scupper is painted to match the building exterior.
9 PRIMED 24 GA. G.I. SCUPPER FLASHING SET IN ROOF CEMENT O/ FIELD OF PLIES - INSTALL FLASHING AND STRIPPING PLIES O/ NAILED FLANGES MINERAL SURFACE CAP SHEET TO RETURN INTO OPENING ON ALL SIDES CONC. TILT-UP PANEL SEALANT 24 GA. G.I. SCUPPER PAINTED TO MATCH BUILDING 4" 8" DOWNSPOUT DIM. SEE ROOF PLAN 8" SEE ROOF PLAN 2" O.S. OPG. D.S. OPG. 03020
