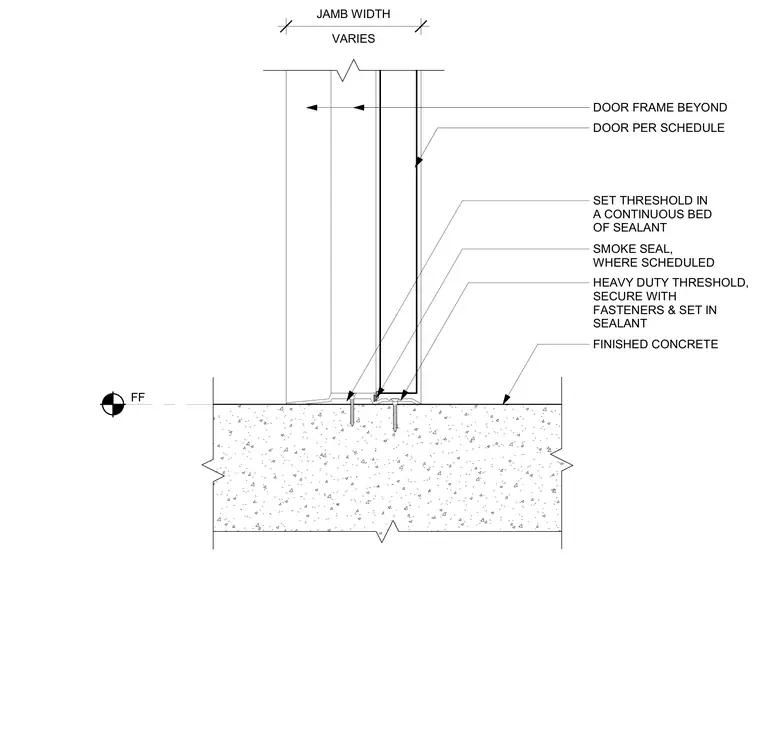

A heavy-duty threshold sits atop a finished concrete slab and is anchored with mechanical fasteners bedded in a continuous layer of sealant. The door frame beyond has a jamb width that varies above the finished floor level. A smoke seal is provided where scheduled.
FINISHED CONCRETE DOOR PER SCHEDULE HEAVY DUTY THRESHOLD, SECURE WITH FASTENERS & SET IN SEALANT SMOKE SEAL, WHERE SCHEDULED SET THRESHOLD IN A CONTINUOUS BED OF SEALANT DOOR FRAME BEYOND VARIES JAMB WIDTH FF
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
