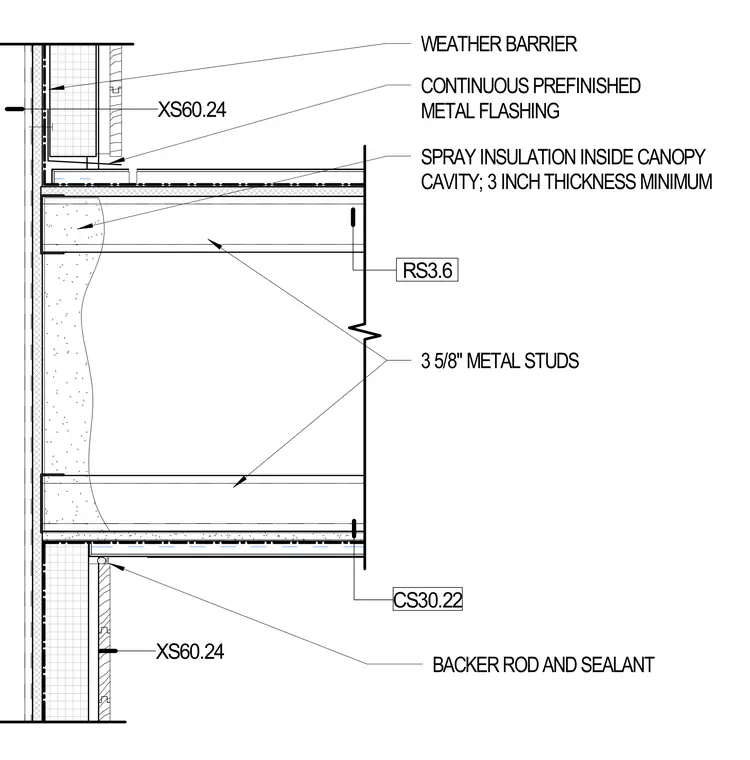

Continuous prefilled metal flashing interfaces with weather barrier and spray insulation maintaining a three-inch minimum thickness inside the canopy cavity. Cold-formed steel three and five-eighths inch metal studs frame the canopy assembly. Backer rod and sealant seal the joint transitions at the wall intersection.
XS60.24 RS3.6 CS30.22 XS60.24 BACKER ROD AND SEALANT 3 5/8" METAL STUDS CONTINUOUS PREFINISHED METAL FLASHING WEATHER BARRIER SPRAY INSULATION INSIDE CANOPY CAVITY; 3 INCH THICKNESS MINIMUM
