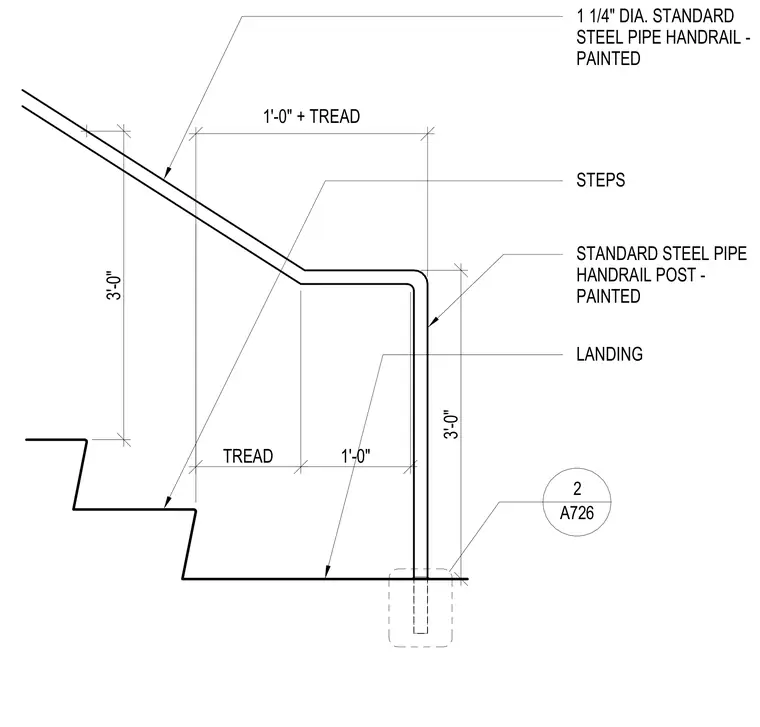

A one-and-a-quarter-inch diameter standard painted steel pipe handrail mounts to a matching painted steel pipe handrail post at the transition from stair treads to the landing. The vertical post anchors into the landing slab. Dimensions indicate a three-foot handrail height above the nosing and landing surface.
1'-0" + TREAD 3'-0" 3'-0" 1'-0" TREAD 2 A726 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL - PAINTED STEPS STANDARD STEEL PIPE HANDRAIL POST - PAINTED LANDING
