Architectural · A-WAP84

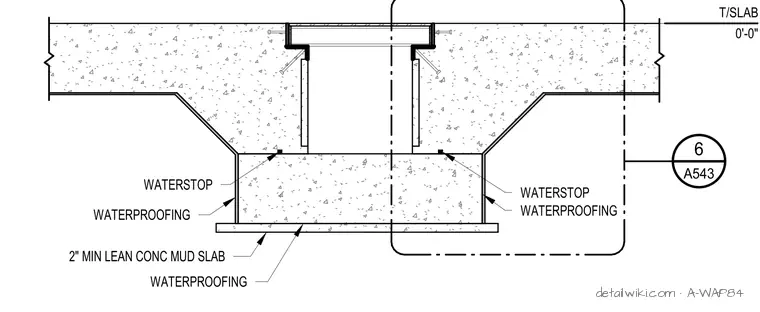

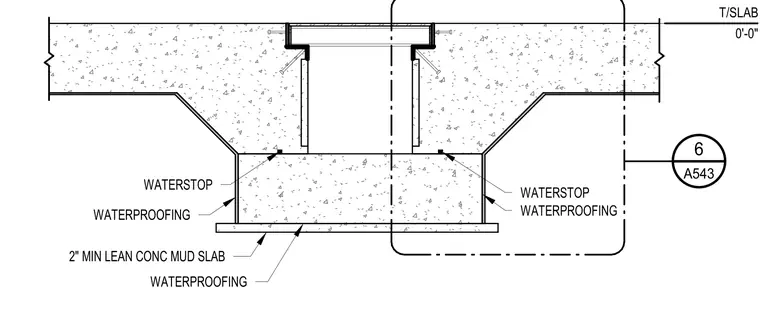

Trench Section

Scale: SCALE: 1/2" = 1'-0"
Units: imperial
Sheet: A543
Discipline: Architectural

Materials

Concrete

Elements

Floors / Slabs Waterproofing / Flashing

Text on the drawing

T/SLAB 0'-0" WATERSTOP WATERPROOFING WATERPROOFING 2" MIN LEAN CONC MUD SLAB WATERPROOFING WATERSTOP A543 6
