Architectural · A-WANRJ

Stair Wall Handrail Bracket

Materials

Elements

About this detail

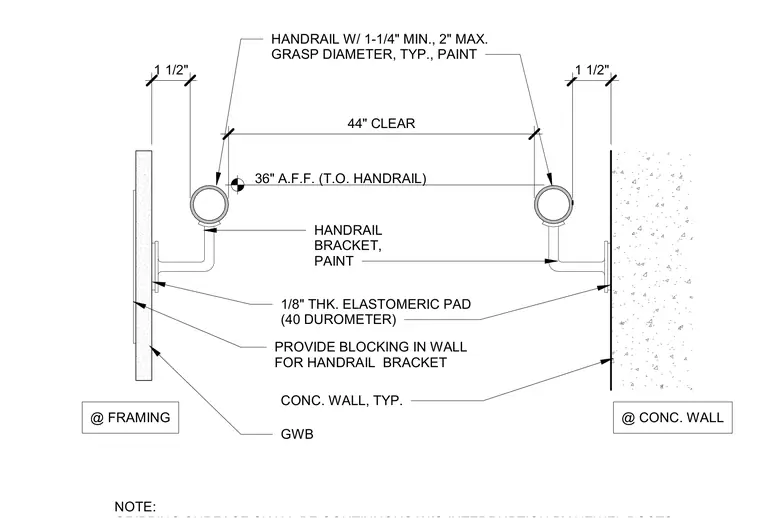

Handrail brackets are mounted to gypsum wallboard over framing and directly to concrete walls with an intervening one-eighth-inch-thick forty durometer elastomeric pad. The handrail features a grasp diameter between one and one-quarter inches and two inches, painted finish, and is positioned thirty-six inches above the finished floor to the top of the handrail with a forty-four-inch clear space between handrails. Blocking is provided within the wall assembly to support the handrail bracket.
