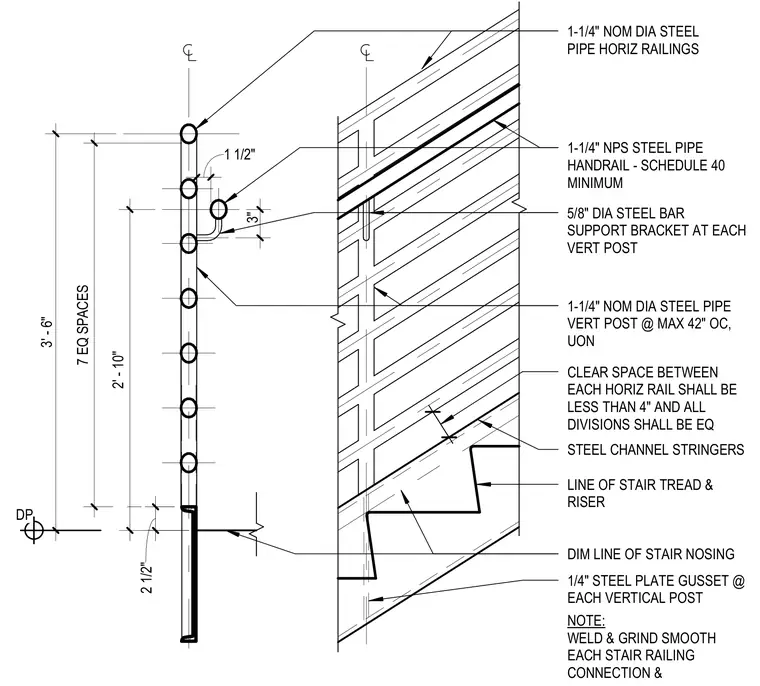

This stair guardrail and handrail assembly consists of one-and-one-quarter-inch nominal diameter steel pipe horizontal rails spaced evenly with a maximum clearance of under four inches. A one-and-one-quarter-inch nominal diameter schedule forty steel pipe handrail is mounted on five-eighths-inch diameter steel bar support brackets attached to each vertical post. One-and-one-quarter-inch nominal diameter steel pipe vertical posts are spaced at a maximum of forty-two inches on center, unless otherwise noted, and are welded to one-quarter-inch steel plate gussets at each vertical post. Steel channel stringers support the stair treads and risers, with all stair railing connections welded and ground smooth.
DP 1 1/2" 7 EQ SPACES 2 1/2" 3' - 6" 1-1/4" NOM DIA STEEL PIPE HORIZ RAILINGS 1-1/4" NPS STEEL PIPE HANDRAIL - SCHEDULE 40 MINIMUM 3" 5/8" DIA STEEL BAR SUPPORT BRACKET AT EACH VERT POST 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 42" OC, UON CLEAR SPACE BETWEEN EACH HORIZ RAIL SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ STEEL CHANNEL STRINGERS DIM LINE OF STAIR NOSING LINE OF STAIR TREAD & RISER 1/4" STEEL PLATE GUSSET @ EACH VERTICAL POST NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & 2' - 10"
