Architectural · A-W9WRA

Main Elevator Lobby Ceiling and Entrance Detail

Materials

Concrete Steel Masonry / CMU Stone Glass / Glazing Metal (misc.)

Elements

Walls Partitions Doors Facades / Cladding Ceilings Floors / Slabs Decks Entrances

About this detail

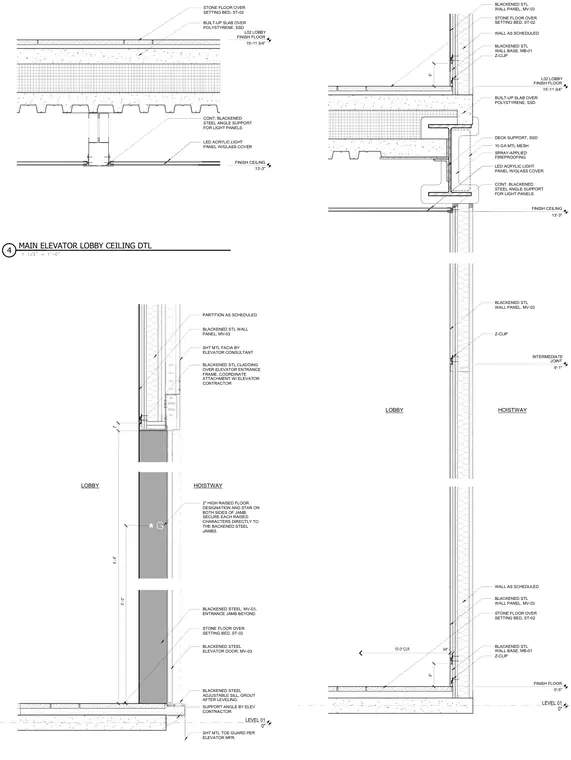

An elevator hoistway intersects a main elevator lobby, incorporating blackened steel wall panels designated as MV-03 supported by Z-clips over scheduled partitions. The floor assembly consists of a stone finish over a setting bed and built-up slab with polystyrene insulation over metal deck support with spray-applied fireproofing. The ceiling incorporates continuous blackened steel angle supports carrying LED acrylic light panels with glass covers. The elevator entrance features a blackened steel sill, adjustable sill grouted after leveling, sheet metal toe guard, and a blackened steel entrance frame with raised floor designations secured directly to the jambs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
