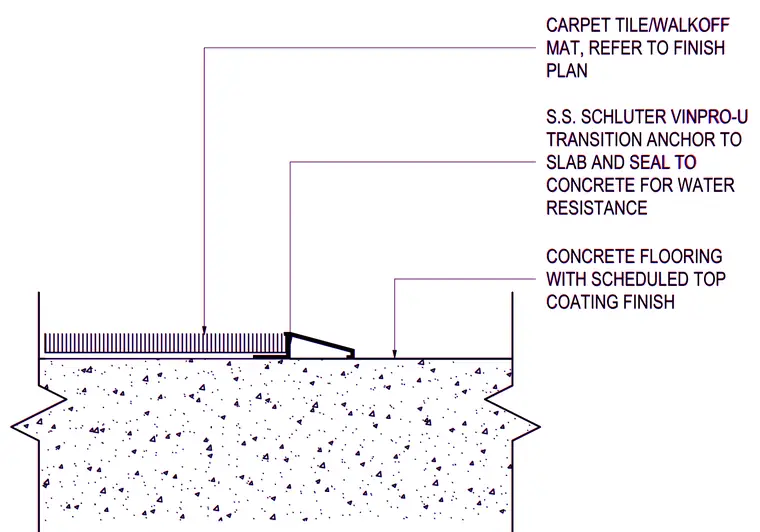

A stainless steel Schluter Vinpro-U transition strip anchors directly to the concrete floor slab to join a finished concrete topping with a carpet tile or walkoff mat. Sealant is applied at the transition anchor to the concrete for water resistance. The concrete flooring receives a scheduled top coating finish.
CONCRETE FLOORING WITH SCHEDULED TOP COATING FINISH CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CONCRETE FLOORING WITH SCHEDULED TOP COATING FINISH CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
