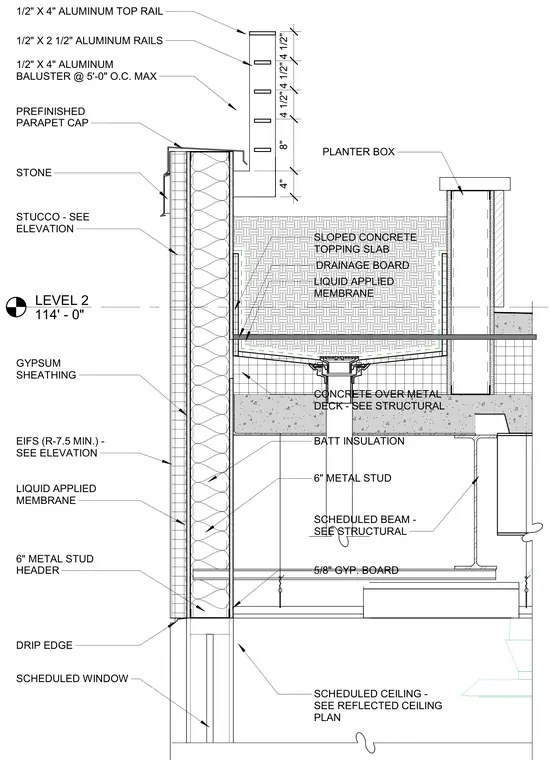

This wall section details the Level 2 assembly featuring a concrete over metal deck floor structure supported by a scheduled steel beam with underside batt insulation and a suspended gypsum board ceiling. The exterior wall consists of six-inch metal studs with gypsum sheathing, liquid-applied waterproofing membrane, and exterior insulation and finish system with a minimum R-7.5 rating or stone cladding. Above the floor slab, a sloped concrete topping slab sits over drainage board and liquid-applied membrane alongside an integrated planter box and a prefinished parapet cap. An aluminum railing composed of a one-half by four-inch top rail, intermediate rails, and balusters spaced at a maximum of five feet on center anchors to the assembly.
LEVEL 2 114' - 0" 4 1/2" 4 1/2" 4 1/2" 8" 4" PLANTER BOX PREFINISHED PARAPET CAP STUCCO - SEE ELEVATION EIFS (R-7.5 MIN.) - SEE ELEVATION 6" METAL STUD HEADER 5/8" GYP. BOARD 6" METAL STUD BATT INSULATION GYPSUM SHEATHING LIQUID APPLIED MEMBRANE SCHEDULED WINDOW SCHEDULED CEILING - SEE REFLECTED CEILING PLAN CONCRETE OVER METAL DECK - SEE STRUCTURAL DRAINAGE BOARD LIQUID APPLIED MEMBRANE SLOPED CONCRETE TOPPING SLAB STONE 1/2" X 4" ALUMINUM TOP RAIL 1/2" X 2 1/2" ALUMINUM RAILS 1/2" X 4" ALUMINUM BALUSTER @ 5'-0" O.C. MAX SCHEDULED BEAM - SEE STRUCTURAL DRIP EDGE
