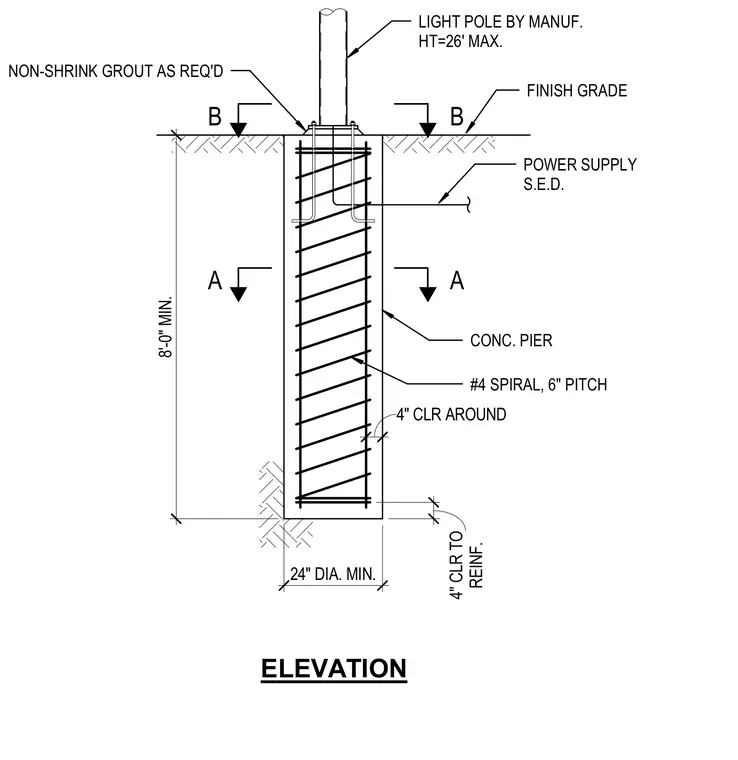

A reinforced concrete pier supports a manufacturer-provided light pole with a maximum height of twenty-six feet. The cylindrical pier measures twenty-four inches in minimum diameter and eight feet in minimum depth below the finish grade. Reinforcement consists of a number four spiral with a six-inch pitch, maintaining four inches of clearance around the reinforcement and at the bottom. Non-shrink grout is placed as required beneath the base plate at the finish grade. A power supply feed enters the pier from the side.
FINISH GRADE LIGHT POLE BY MANUF. HT=26' MAX. NON-SHRINK GROUT AS REQ'D B B A A 24" DIA. MIN. POWER SUPPLY S.E.D. CONC. PIER #4 SPIRAL, 6" PITCH 4" CLR AROUND REINF. 4" CLR TO 8'-0" MIN. ELEVATION
