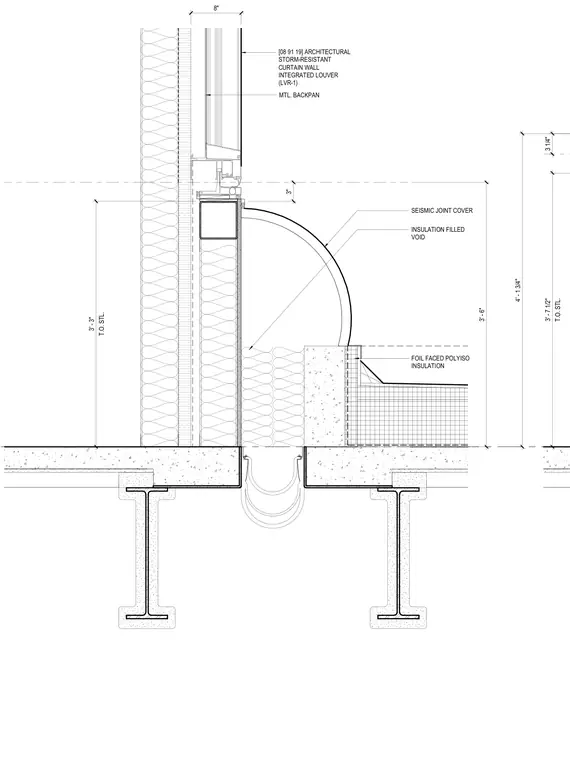

This wall section details the sill condition of an architectural storm-resistant curtain wall integrated louver above a seismic joint. The assembly features an architectural storm-resistant curtain wall with a metal backpan positioned above a structural steel framing system. An insulation-filled void is integrated with foil-faced polyisocyanurate insulation. A seismic joint cover spans the floor transition across the seismic joint. Structural steel framing members support the assembly below.
4' - 1 3/4" 3 1/4" T.O. STL. 3' - 7 1/2" 3' - 6" 3" [08 91 19] ARCHITECTURAL STORM-RESISTANT CURTAIN WALL INTEGRATED LOUVER (LVR-1) MTL. BACKPAN 8" INSULATION FILLED VOID FOIL FACED POLYISO INSULATION SEISMIC JOINT COVER T.O. STL. 3' - 3"
