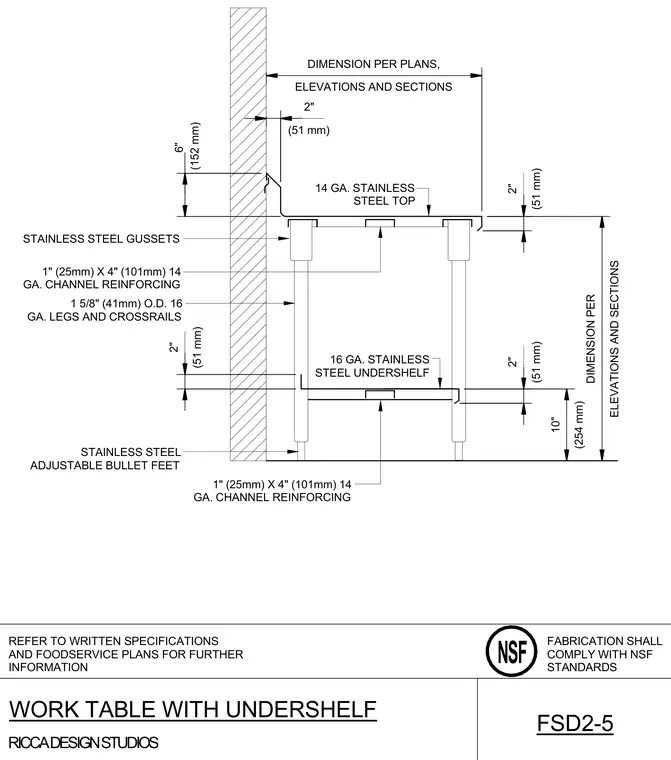

This food service detail shows a commercial work table assembly constructed with a fourteen-gauge stainless steel top and a sixteen-gauge stainless steel undershelf. The top and undershelf are reinforced underneath with one-inch by four-inch fourteen-gauge channel reinforcing members. The frame utilizes one and five-eighths inch outer diameter sixteen-gauge legs and crossrails tied to the top with stainless steel gussets. Stainless steel adjustable bullet feet support the legs at the floor level. Fabrication complies with NSF standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 14 GA. STAINLESS STEEL TOP 16 GA. STAINLESS STEEL UNDERSHELF 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING STAINLESS STEEL GUSSETS 1 5/8" (41mm) O.D. 16 GA. LEGS AND CROSSRAILS STAINLESS STEEL ADJUSTABLE BULLET FEET 1" (25mm) X 4" (101mm) 14 GA. CHANNEL REINFORCING (152 mm) 6" ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (51 mm) 2" (51 mm) 2" ELEVATIONS AND SECTIONS DIMENSION PER (51 mm) 2" (51 mm) 2" (254 mm) 10" WORK TABLE WITH UNDERSHELF FSD2-5
