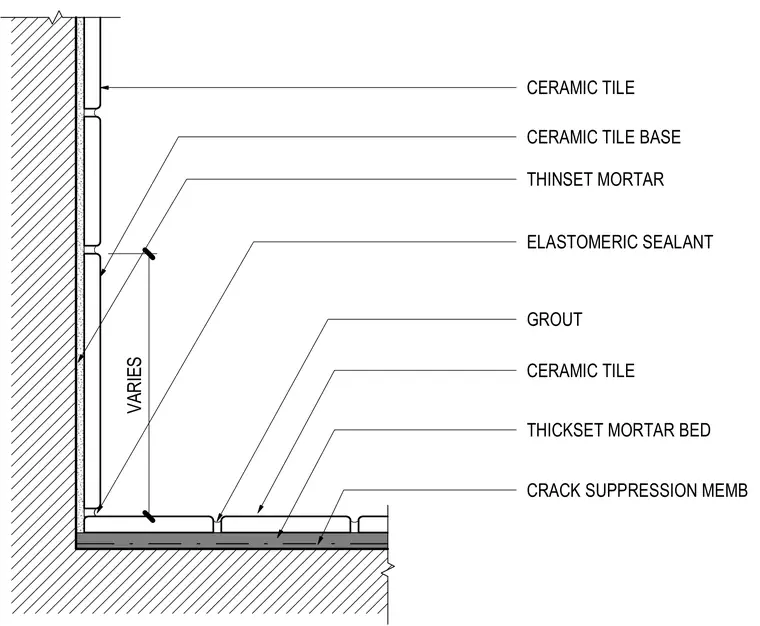

Ceramic tile base is adhered to the wall with thinset mortar above a tiled floor assembly. The floor finish consists of ceramic tile set in a thickset mortar bed over a crack suppression membrane, with joints filled with grout. An elastomeric sealant bead seals the joint between the vertical tile base and the horizontal floor tile.
CERAMIC TILE CERAMIC TILE BASE THINSET MORTAR CRACK SUPPRESSION MEMB THICKSET MORTAR BED CERAMIC TILE GROUT ELASTOMERIC SEALANT VARIES
