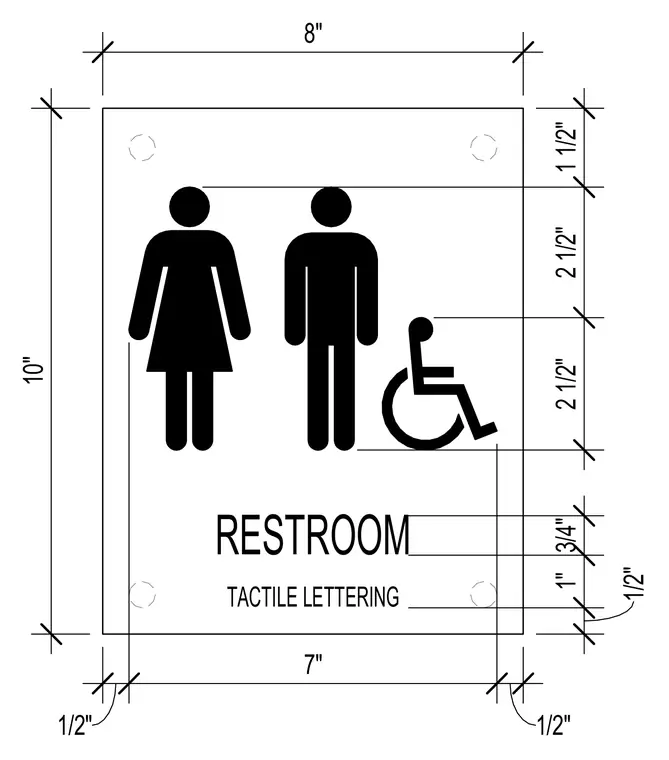

The wall-mounted restroom sign measures eight inches wide by ten inches high, featuring tactile lettering and universally recognized wheelchair accessibility symbols. The layout includes centered text reading RESTROOM above a line specifying TACTILE LETTERING, framed by precise vertical and horizontal placement dimensions. Corner mounting points are indicated with dashed circles located one-half inch in from each edge. The sign integrates standard pictogram graphics for male, female, and wheelchair accessibility.
